Appendix: \(\tau(x)\) validation for test geometries
[ ]:
import numpy as np
import matplotlib.pyplot as plt
import taufactor as tau
[2]:
nx = 250
fields = {}
structures = ["diagonals", "diag-pillars", "large-small", "small-large", "smooth-rough", "wedge"]
cube_size = 25
x, y, z = np.ogrid[:nx, :nx, :1]
pattern = (((x + y + z) // cube_size) % 2)
fields["diagonals"] = pattern
pillars = x - x + ((y // cube_size) + (z // cube_size)) % 2
pattern = np.zeros((nx, nx, 1))
pattern[:125,:] = pillars[:125,:]
pattern[125:,:] = fields["diagonals"][:125,:]
fields["diag-pillars"] = np.roll(pattern[::-1,:,:], shift=10, axis=1)
pattern = np.zeros((nx, nx, 1))
pattern[:125,0:40] = 1
pattern[125:,15:25] = 1
pattern[:,50:100] = pattern[:,:50]
pattern[:,100:200] = pattern[:,:100]
pattern[:,200:250] = pattern[:,:50]
pattern = np.roll(pattern, shift=5, axis=1)
fields["large-small"] = pattern
fields["small-large"] = pattern[::-1,:,:].copy()
pattern = pillars.copy()
pattern[0::2, :, :] = np.roll(pattern[0::2, :, :], shift=1, axis=1)
pattern[:125,:] = pillars[:125,:]
fields["smooth-rough"] = np.roll(pattern, shift=10, axis=1)
pattern = np.zeros((nx, nx, 1))
mask = ((x+0.5)/nx + 4*(y+0.5)/nx < 2) & ((x+0.5)/nx - 4*(y+0.5)/nx < 0)
pattern[mask] = 1
pattern[:,125:] = pattern[:,:125][:,::-1]
pattern[-1,:] = 0
fields["wedge"] = pattern

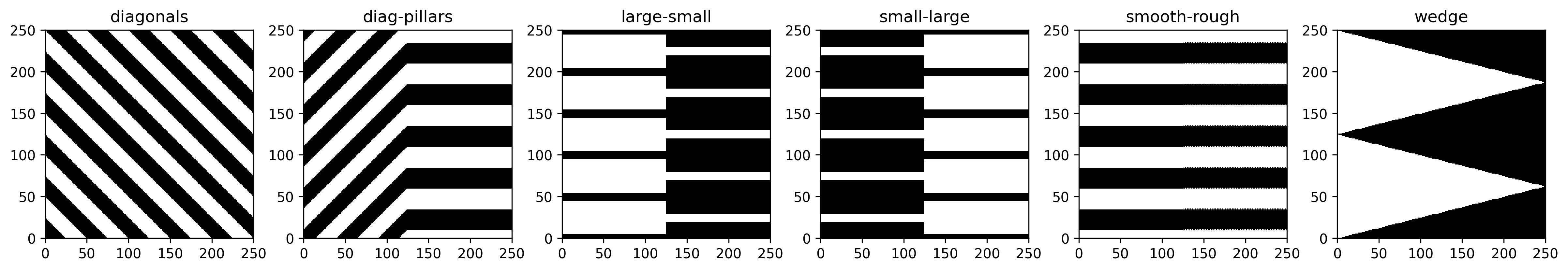

fig, axes = plt.subplots(nrows=1, ncols=6, figsize=(16, 8), dpi=300)
for i, structure in enumerate(structures):
data2d = fields[structure][:, :, 0].T
axes[i].imshow(data2d, cmap='gray', interpolation='none')
axes[i].set_aspect('equal')
axes[i].set_title(structure)
axes[i].set_xlim(0, nx)
axes[i].set_ylim(0, nx)
plt.tight_layout()
plt.show()
Compute \(\tau(x)\) from transport-reaction simulation
[3]:
batch = np.stack([fields[structure] for structure in structures], axis=0)
batch.shape
[3]:
(6, 250, 250, 1)
We set the convergence criterion really low to ensure convergence on the order of single precision
[4]:

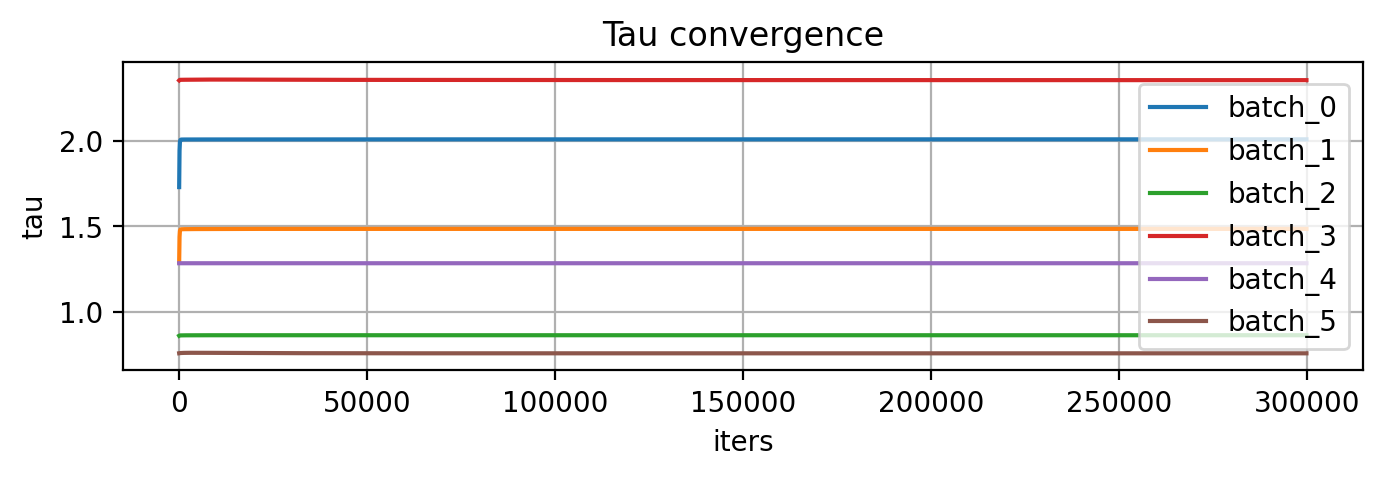

s = tau.PeriodicElectrodeSolver(batch, device='cuda')
tau_electrode = s.solve(iter_limit=300000, conv_crit=1e-6, plot_interval=100, verbose='debug')
Iter: 300000, conv error: 5.960E-06, tau: 2.35384 (batch element 3)
Warning: not converged
unconverged value of tau: [2.00813608 1.48497561 0.8637244 2.35384388 1.28432978 0.75808579] after: 300000 iterations in: 103.5589s (0.0003 s/iter)
GPU-RAM currently 8.09 MB (max allocated 11.09 MB; 23.07 MB reserved)
Save results to dictionaries
[5]:
vol_x = {}
a_x = {}
tau_x = {}
c_x = {}
for i, structure in enumerate(structures):
vol_x[structure] = s.vol_x[i]
a_x[structure] = s.a_x[i]
tau_x[structure] = s.tau_x[i]
name = structure + "_c"
c_x[name] = s.c_x[i]
fields[name] = s.field[i,1:-1,1:-1,1:-1].cpu().numpy()
Classic \(\tau_c\) reference
[6]:

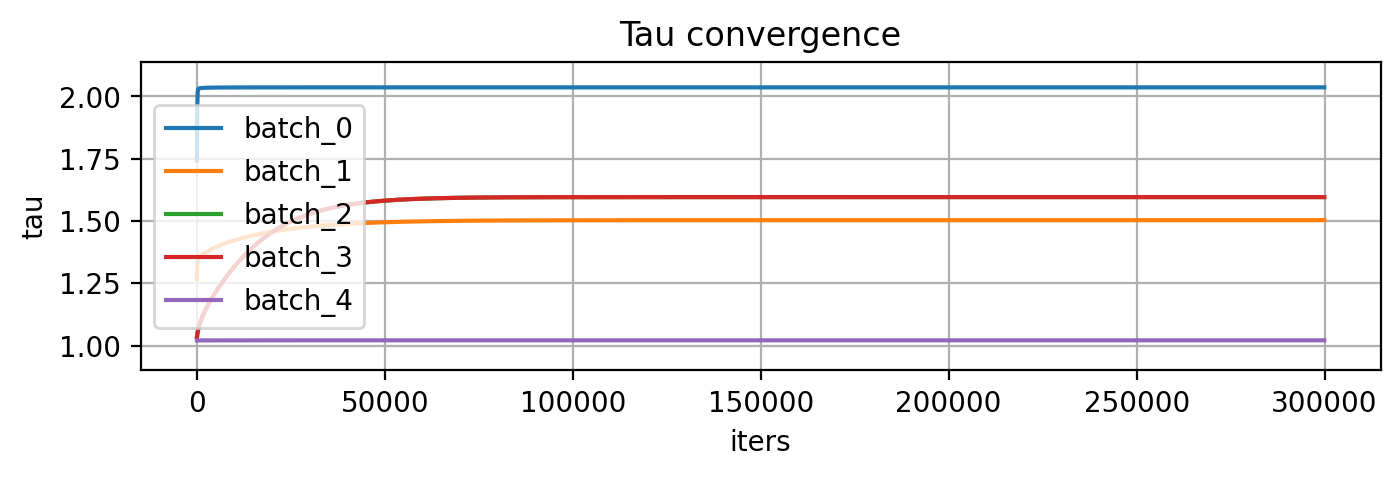

t = tau.PeriodicSolver(batch, device='cuda')
tau_classic = t.solve(iter_limit=300000, conv_crit=1e-6, verbose='debug', plot_interval=100)
Iter: 300000, conv error: 1.606E-03, tau: 1.59586 (batch element 2)
Warning: not converged
unconverged value of tau: [2.0364084 1.5033146 1.5958596 1.5958687 1.0209299 0. ] after: 300000 iterations in: 110.5198s (0.0004 s/iter)
GPU-RAM currently 14.67 MB (max allocated 19.24 MB; 44.04 MB reserved)
[7]:
tau_x_classic = {}
for i, structure in enumerate(structures):
tau_x_classic[structure] = t.tau_x[i]
name = structure + "_c_classic"
c_x[name] = 0.5-t.c_x[i]
fields[name] = 0.5-t.field[i,1:-1,1:-1,1:-1].cpu().numpy()
Result evaluation
We use the recursive TLM formula to compute the impedance resulting from the microstructural parameters \(\epsilon(x)\), \(a(x)\) and \(\tau(x)\) and save them to dictionaries.
[8]:
from taufactor.utils import compute_impedance
frequency_tau_x = {}
Z_TLM_tau_x = {}
Z_TLM_tau_mean = {}
for i, structure in enumerate(structures):
# Compute impedance for heterogeneous distribution
R = tau_x[structure] / vol_x[structure]
R[vol_x[structure] == 0] = 1e30
R[np.isnan(tau_x[structure])] = 1e30
C = a_x[structure]
freq_0 = np.mean(vol_x[structure]) / np.mean(C) / nx**2
freq_range = freq_0 * 2 ** np.arange(-3, 10, 0.5)
freq = freq_range[::-1].copy()
frequency_tau_x[structure] = freq
Z_TLM_tau_x[structure] = compute_impedance(R, C, freq)
# Compute impedance for homogenized case
R_mean = np.full(nx, 1/np.mean(vol_x[structure]))
C_mean = np.full(nx, np.mean(C))
Z_TLM_tau_mean[structure] = compute_impedance(R_mean, C_mean, freq)
(Optionally:) Load EIS simulation results (see more details at the end of this notebook)
[9]:
import pickle
Z_EIS = {}
for structure in structures:
filename = "impedance_solve_" + structure + ".pkl"
with open(filename, "rb") as f:
data = pickle.load(f)
Z_EIS[structure] = data.impedance

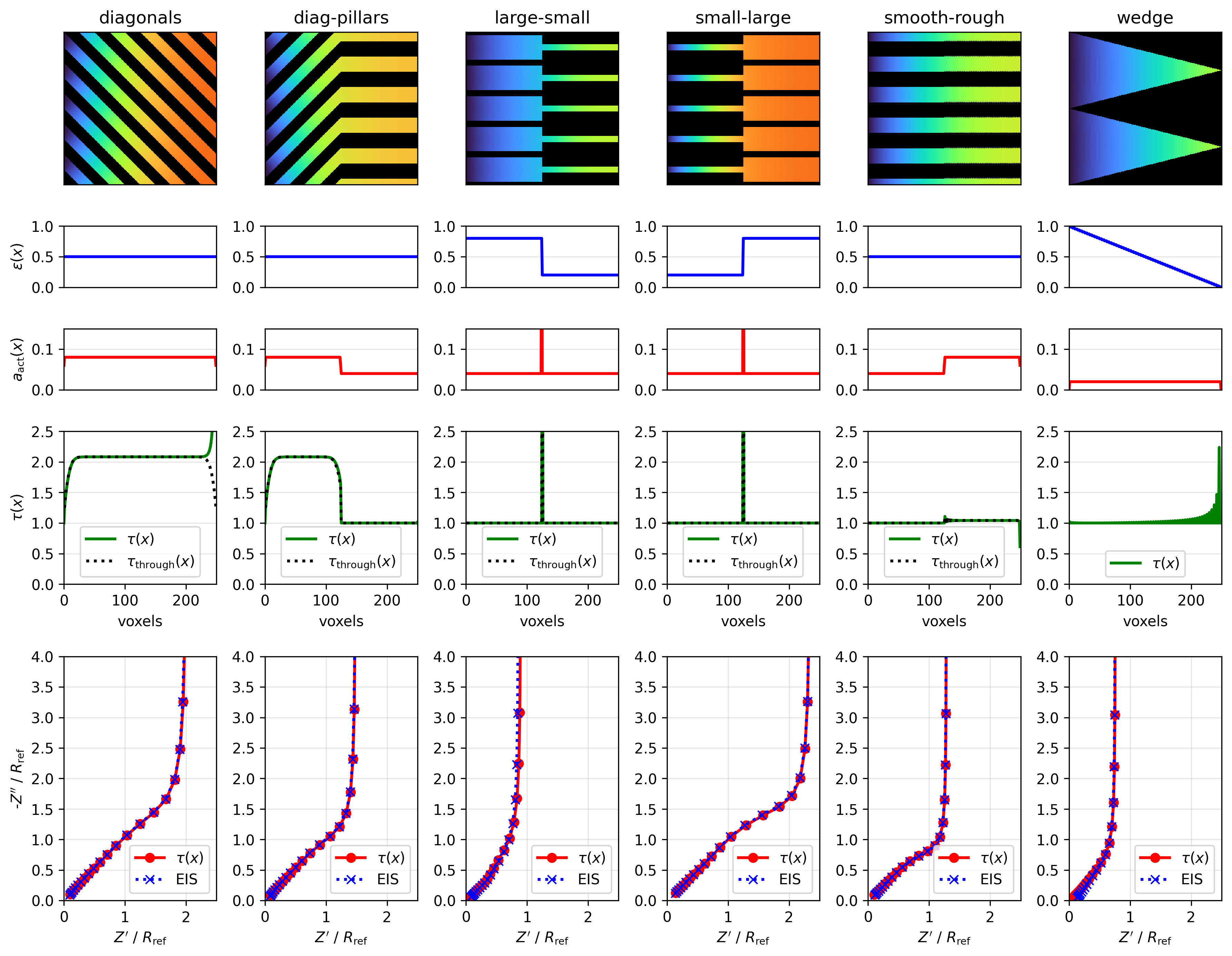

Create master plot of results
[10]:
a_x['wedge'][1:-1] = np.mean(a_x['wedge'][1:-1])
[11]:
from matplotlib.ticker import FormatStrFormatter
fig, axes = plt.subplots(nrows=5, ncols=6, figsize=(12, 9.4), dpi=300,
constrained_layout=True,
gridspec_kw={'height_ratios': [1.0, 0.4, 0.4, 1, 2]})
for i, structure in enumerate(structures):
lw = 2
name = structure + "_c"
data1 = fields[name][:, :, 0].T
data2 = fields[structure][:, :, 0].T
alpha = np.clip(data2==0, 0, 1).astype(float)
axes[0, i].imshow(data1, cmap='turbo_r', interpolation='none', vmin=0.3, vmax=1)
axes[0, i].imshow(data2, cmap='gray', interpolation='none', alpha=alpha)
axes[0, i].set_aspect('equal')
axes[0, i].set_title(structure)
axes[0, i].set_xlim(0, nx)
axes[0, i].set_ylim(0, nx)
axes[0, i].set_xticks([])
axes[0, i].set_yticks([])
ax_line = axes[1, i]
vx = np.asarray(vol_x[structure]).squeeze()
xv = np.linspace(0, nx, num=vx.size, endpoint=False)
ax_line.plot(xv, vx, color='blue', linewidth=lw)
ax_line.set_xlim(0, nx)
ax_line.set_ylim(0, 1)
axes[1, i].set_xticks([])
ax_line.grid(True, alpha=0.3)
ax_line = axes[2, i]
vx = np.asarray(a_x[structure]).squeeze()
xv = np.linspace(0, nx, num=vx.size, endpoint=False)
ax_line.plot(xv, vx, color='red', linewidth=lw)
ax_line.set_xlim(0, nx)
ax_line.set_ylim(0, 0.15)
ax_line.set_yticks([0,0.1])
ax_line.yaxis.set_major_formatter(FormatStrFormatter('%.1f'))
axes[2, i].set_xticks([])
ax_line.grid(True, alpha=0.3)
ax_line = axes[3, i]
vx = np.asarray(tau_x[structure]).squeeze()
xv = np.linspace(0, nx, num=vx.size, endpoint=False)
ax_line.plot(xv, vx, color='green', label='$\\tau(x)$', linewidth=lw)
vx = np.asarray(tau_x_classic[structure]).squeeze()
if vx[0] != 0:
ax_line.plot(xv[1:], vx, color='black', linestyle=':', label='$\\tau_\\text{through}(x)$', linewidth=lw)
ax_line.set_xlim(0, nx)
ax_line.set_ylim(0, 2.5)
ax_line.yaxis.set_major_formatter(FormatStrFormatter('%.1f'))
ax_line.grid(True, alpha=0.3, axis='y')
ax_line.legend(loc='lower center')
axes[1, 0].set_ylabel('$\\epsilon(x)$')
axes[2, 0].set_ylabel('$a_\\text{act}(x)$')
axes[3, 0].set_ylabel('$\\tau(x)$')
ax_line.set_xlabel('voxels')
ax_line = axes[4, i]
Z = Z_TLM_tau_x[structure]
Z_mean = Z_TLM_tau_mean[structure]
scale = Z_mean[-1].real
ax_lim = 1.2*np.max([Z.real, Z_mean.real])/scale
ax_line.plot(Z.real/scale, -Z.imag/scale, color='red', linestyle='-', marker='o', label='$\\tau(x)$', linewidth=lw)
Z = Z_EIS[structure]
ax_line.plot(np.real(Z)/scale, -np.imag(Z)/scale, color='blue', linestyle=':', marker='x', label='EIS', linewidth=lw)
ax_line.set_xlim(0, 2.5)
ax_line.set_ylim(0, 4)
ax_line.set_aspect('equal')
ax_line.set_xlabel("$Z'$ / $R_\\text{ref}$")
axes[4,0].set_ylabel("-$Z''$ / $R_\\text{ref}$")
ax_line.legend(loc='lower right')
ax_line.grid(True, alpha=0.3)
plt.tight_layout()
plt.show()
/tmp/ipykernel_540654/2035934709.py:76: UserWarning: The figure layout has changed to tight
plt.tight_layout()
Calculate the averaged classical tortuosity factor \(\tau_c\)
… for the through-transport simulation \(\tau_\text{through}(x)\)
[12]:
t_ref = t.tau_x
eps = 0.5*(t.vol_x[:,1:] + t.vol_x[:,:-1])
tau_c = np.mean(t_ref/eps, axis=1) * np.mean(eps, axis=1)
print(tau_c)
[2.0405836 1.5054078 1.5963418 1.5963416 1.0210164 0. ]
Detailed comparison of \(\tau(x)\) vs scalar metrics
[13]:
def mean_staggered_x_grid(field):
average = np.sum(field[1:-1]) \
+ 0.5*np.sum(field[ 0]) \
+ 0.5*np.sum(field[-1])
average /= (field.shape[0] - 1)
return average
[14]:
from scipy.linalg import solve_banded
def solve_tridiagonal_system(N, D_mid, c_left, c_right):
# Prepare tridiagonal matrix coefficients
lower = -D_mid[:-1] # sub-diagonal (a_i)
main = (D_mid[:-1] + D_mid[1:]) # main diagonal (b_i)
upper = -D_mid[1:] # super-diagonal (c_i)
# Build banded matrix (required by solve_banded)
ab = np.zeros((3, N-2))
ab[0, 1:] = upper[:-1] # upper diagonal
ab[1, :] = main # main diagonal
ab[2, :-1] = lower[1:] # lower diagonal
# RHS vector
b = np.zeros(N-2)
b[0] += D_mid[0] * c_left
b[-1] += D_mid[-1] * c_right # usually zero
# Solve the linear system
c_internal = solve_banded((1,1), ab, b)
# Construct full concentration array
c = np.zeros(N)
c[0] = c_left
c[1:-1] = c_internal
c[-1] = c_right
return c
def solve_steady_state_c(D_mid, c_left=1, c_right=0):
N = len(D_mid) + 1
if np.any(D_mid==0):
return c_left*np.zeros(N)
else:
c = solve_tridiagonal_system(N, D_mid, c_left, c_right)
return c
def solve_tridiagonal_reactive_zero_flux(N, D_mid, a_mid, c_left, c0):
dx = 1 / (N - 1) # adjust if physical length L is different
# Prepare tridiagonal matrix coefficients
lower = -D_mid[:-1] / dx**2 # sub-diagonal
main = (D_mid[:-1] + D_mid[1:]) / dx**2 + a_mid # main diagonal with reaction term
upper = -D_mid[1:] / dx**2 # super-diagonal
# Adjust coefficients for zero-flux boundary at right boundary
main[-1] = D_mid[-2] / dx**2 + a_mid[-1] # modify the last diagonal entry
# Build banded matrix for solve_banded
ab = np.zeros((3, N-2))
ab[0, 1:] = upper[:-1] # upper diagonal
ab[1, :] = main # main diagonal
ab[2, :-1] = lower[1:] # lower diagonal
# RHS vector with reaction/source term
b = a_mid * c0
b[0] += D_mid[0] * c_left / dx**2
# Solve the linear system
c_internal = solve_banded((1,1), ab, b)
# Construct full concentration array
c = np.zeros(N)
c[0] = c_left
c[1:-1] = c_internal
c[-1] = c[-2] # Enforce zero-flux by setting last concentration equal to the second-to-last
return c
def solve_steady_state_reactive_zero_flux(D_mid, a, c_left=1, c0=0):
N = len(D_mid) + 1
a_mid = 0.5*(a[1:]+a[:-1])
c = solve_tridiagonal_reactive_zero_flux(N, D_mid, a_mid, c_left, c0)
return c
[15]:

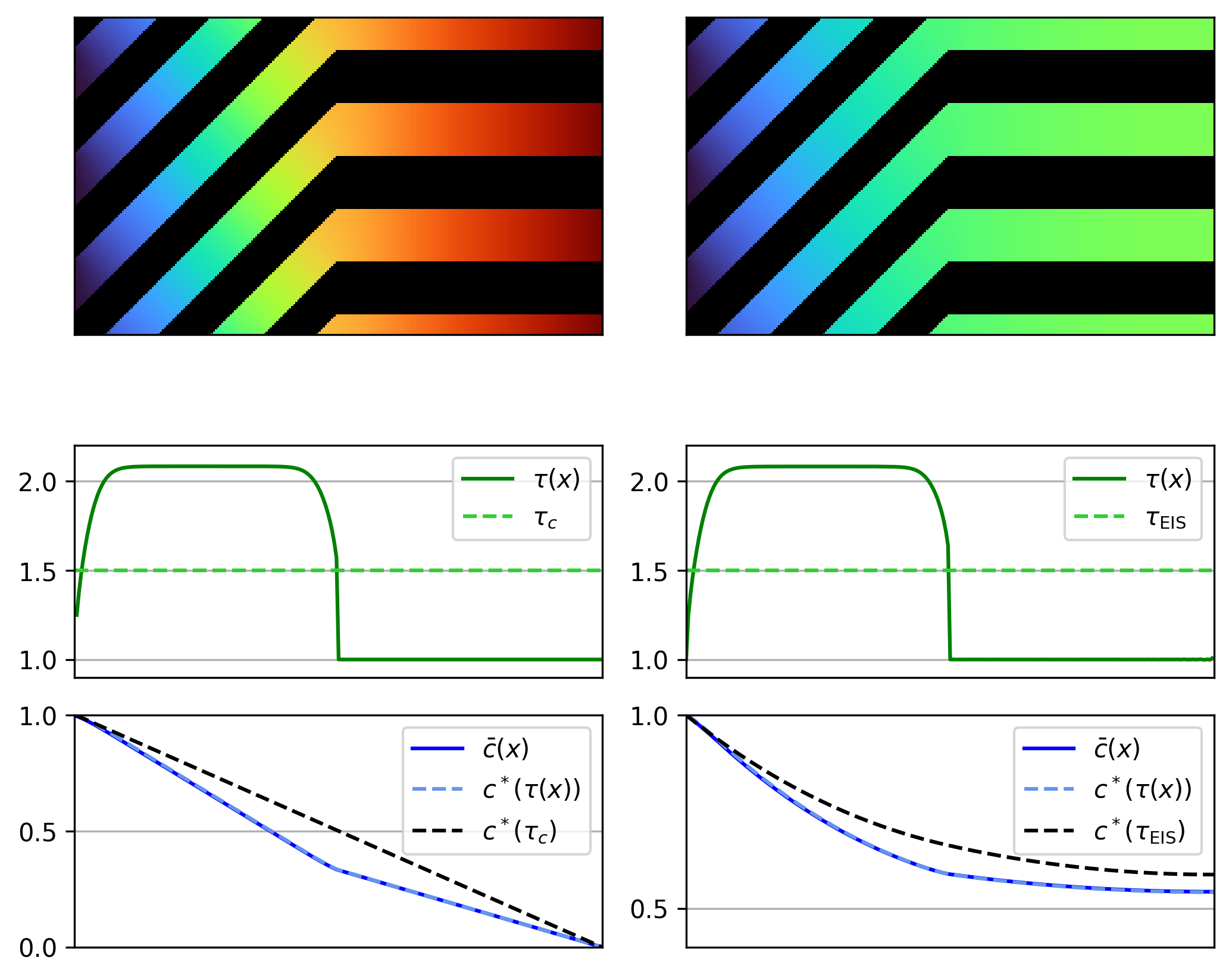

structure = 'diag-pillars'
fig, ax = plt.subplots(nrows=3, ncols=2, figsize=(7, 6), dpi=300,
constrained_layout=True,
gridspec_kw={'height_ratios': [1.0, 0.5, 0.5]})
for i, suffix in enumerate(['_c_classic', '_c']):
data1 = fields[structure+suffix][:, :150, 0].T
data2 = fields[structure][:, :150, 0].T
alpha = np.clip(data2==0, 0, 1).astype(float)
ax[0, i].imshow(data1, cmap='turbo_r', interpolation='none', vmin=0, vmax=1)
ax[0, i].imshow(data2, cmap='gray', interpolation='none', alpha=alpha)
ax[0, i].set_aspect('equal')
ax[0, i].set_xlim(0, nx)
ax[0, i].set_ylim(0, 150)
ax[0, i].set_xticks([])
ax[0, i].set_yticks([])
dx = 1 / nx
x = np.arange(0, nx)+0.5
ax[1,0].plot(np.arange(1, nx), tau_x_classic[structure], label='$\\tau(x)$', color='green', linestyle='-')
ax[1,0].plot(np.arange(0, nx), 1.5*np.ones(nx), label='$\\tau_c$', color='limegreen', linestyle='--')
ax[1,1].plot(np.arange(0, nx), tau_x[structure], label='$\\tau(x)$', color='green', linestyle='-')
ax[1,1].plot(np.arange(0, nx), 1.5*np.ones(nx), label='$\\tau_\\text{EIS}$', color='limegreen', linestyle='--')
for i, suffix in enumerate(['_c_classic', '_c']):
ax[2,i].plot(np.arange(0, 250), c_x[structure+suffix], label='$\\bar{c}(x)$', color='blue', linestyle='-')
c_tau = solve_steady_state_c(0.5*(vol_x[structure][:-1]+vol_x[structure][1:])/tau_x_classic[structure])
ax[2,0].plot(x, c_tau, label='$c^*(\\tau(x))$', color='cornflowerblue', linestyle='--')
c_tau = solve_steady_state_c(0.5/1.5*np.ones(nx-1))
ax[2,0].plot(x, c_tau, label='$c^*(\\tau_c)$', color='black', linestyle='--')
k0 = np.mean(vol_x[structure]) / np.mean(a_x[structure]) #/ nx**2
c_tau = solve_steady_state_reactive_zero_flux(vol_x[structure]/tau_x[structure], k0*a_x[structure])
ax[2,1].plot(np.arange(0, 251), c_tau, label='$c^*(\\tau(x))$', color='cornflowerblue', linestyle='--')
c_tau = solve_steady_state_reactive_zero_flux(0.5/1.5*np.ones(nx), k0*a_x[structure])
ax[2,1].plot(np.arange(0, 251), c_tau, label='$c^*(\\tau_\\text{EIS})$', color='black', linestyle='--')
for i, suffix in enumerate(['_c_classic', '_c']):
ax[1,i].set_xlim(0, 250)
ax[2,i].set_xlim(0, 250)
ax[1, i].set_xticks([])
ax[2, i].set_xticks([])
ax[1,i].set_ylim(0.9, 2.2)
ax[1,i].legend(loc='upper right')
ax[2,i].legend(loc='upper right')
ax[1,i].grid()
ax[2,i].grid()
ax[2,i].set_yticks([0,0.5, 1])
ax[2,0].set_ylim(0, 1)
ax[2,1].set_ylim(0.4, 1)
plt.tight_layout()
plt.show()
/tmp/ipykernel_540654/3708062810.py:53: UserWarning: The figure layout has changed to tight
plt.tight_layout()
Simulated electrochemical impedance \(\tau_{EIS}\)
Save option as these simulations take ages (double precision necessary, solve for every frequency and currently not parallelised by batching…)
[ ]:
from pathlib import Path
def save_solver_object(s, path_base):
path_base = Path(path_base)
path_base.parent.mkdir(parents=True, exist_ok=True)
pkl_path = path_base.with_suffix(".pkl")
try:
import dill as _pickle
except ImportError: # fallback
import pickle as _pickle
with open(pkl_path, "wb") as f:
# Use highest protocol available (pickle>=5 handles big numpy arrays efficiently)
_pickle.dump(s, f, protocol=getattr(_pickle, "HIGHEST_PROTOCOL", 4))
return pkl_path
[ ]:
a = tau.PeriodicImpedanceSolver(fields['diagonals'], mode='nyquist')
a.solve(iter_limit=500000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(a, "impedance_solve_diagonals")
[ ]:
b = tau.PeriodicImpedanceSolver(fields["diag-pillars"], mode='nyquist')
b.solve(iter_limit=500000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(b, "impedance_solve_diag-pillars")
[ ]:
c = tau.PeriodicImpedanceSolver(fields["large-small"], mode='nyquist')
c.solve(iter_limit=1000000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(c, "impedance_solve_large-small")
[ ]:
d = tau.PeriodicImpedanceSolver(fields["small-large"], mode='nyquist')
d.solve(iter_limit=1000000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(d, "impedance_solve_small-large")
[ ]:
e = tau.PeriodicImpedanceSolver(fields["smooth-rough"], mode='nyquist')
e.solve(iter_limit=500000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(e, "impedance_solve_smooth-rough")
[ ]:
f = tau.PeriodicImpedanceSolver(fields["wedge"], mode='nyquist')
f.solve(iter_limit=1000000, conv_crit=-1, verbose='plot', plot_interval=100)
pkl_path = save_solver_object(f, "impedance_solve_wedge")
